QR Code with Logo

A QR Code is a matrix code (or two-dimensional bar code) created by Japanese corporation Denso-Wave in 1994 for decoding code contents at high speed.

You can create your own personalised and branded QR Codes by modifying them with logo images. With iBarcoder Mac barcode software you can generate QR Code barcodes with logos with a few moments.

To generate QR Code with Logo:

• Add a QR Code to your label using the barcode tool on the toolbar area

• Use the File>Import Image menu option to add a logo image to the barcode,

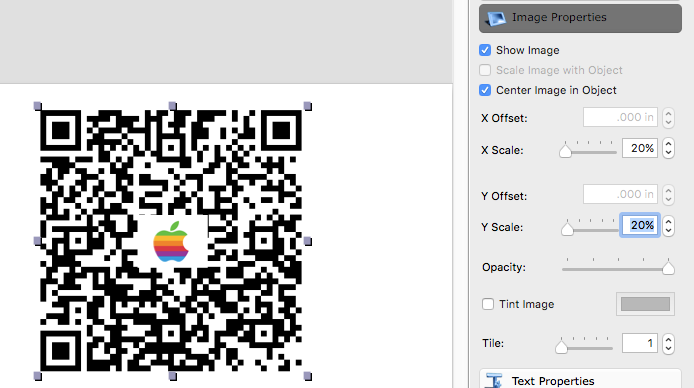

• Go to the Image Properties tab of the Object Information panel. Adjust the logo image scale (approx. 20%), opacity, etc.,

• Go to the Barcode Properties tab of the Barcode Information panel, and make the Error Correction Level of the QR Code higher, if necessary.

Note: error correction level means the ability to restore data if the code is dirty or damaged. There are four error correction levels. Raising it improves error correction capability but increases the amount of QR Code data.
